4 Point Tungsten Carbide Scabbler Bits Construction Scabbler Accessories

4 Point Tungsten Carbide Scabbler Bits Construction Scabbler Accessories
4 Point Tungsten Carbide Scabbler Bits Construction Scabbler Accessories 4 Point Tungsten Carbide Scabbler Bits Construction Scabbler Accessories 4 Point Tungsten Carbide Scabbler Bits Construction Scabbler Accessories

Large Image :  4 Point Tungsten Carbide Scabbler Bits Construction Scabbler Accessories

Product Details:
Place of Origin: Zhuzhou,China
Brand Name: Xinhe
Model Number: ZMT-LK
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Negotiable
Packaging Details: carton package
Delivery Time: Normally 3-5 working days
Payment Terms: T/T, L/C, Western Union
Detailed Product Description
Product Part: ZMT-LK Outside Diameter: 31mm
Height: 41mm Points: 4 Pt
Inside Diameter: 20.4mm I.D. Conicity: 3 °
High Light:

tungsten carbide bit

,

tungsten carbide cutting bit

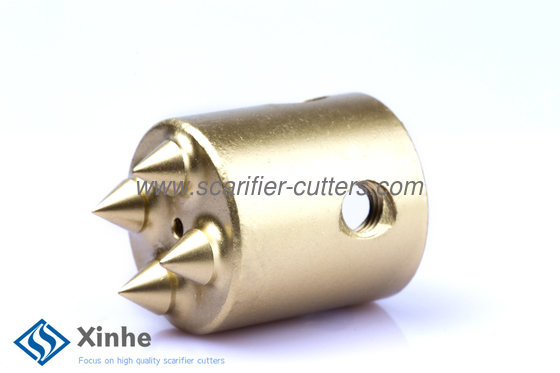

4-Point Tungsten Carbide Scabbler Bits Construction Scabbler Accessories



1) Specification:



Part# Specifications
Product Outerside diameter Inside diameter I.D.Taper Height Tips
ZMT-LK 4 Points Scarifier Scabbler Bits
Material: Good Quality Steel
TCT Carbide Points
Dimension:O.D 31mm*I.D 20.4mm*H 41mm
I.D.Taper: 3 °
31mm 20.4mm 41mm 4





2) Description:



Scabblers use compressed air to hammer piston-mounted bits into the concrete surface. They tend to roughen the concrete surface more than grinding or scarifying.



Xinhe scabbler bits with 4 or multi-pointed tips are with high quality TCT carbide tips, as very important replaceable accessories on construction concrete floor scabbler or hand-held scabblers machines. Now, scabbling is a mechanical process of removing a thin layer of concrete from a structure, typically achieved by compressed air powered machines. A typical scabbling machine uses several heads, each with several carbide or steel tips that peck at the concrete.



3) Application:

  • Removal of laitance, projections
  • Removal of boiler scale, rust, mill scale
  • Preparing floors for toppings
  • Roughening of stones and concrete
  • Keying construction joints
  • Deck scaling



4 Point Tungsten Carbide Scabbler Bits Construction Scabbler Accessories 04 Point Tungsten Carbide Scabbler Bits Construction Scabbler Accessories 1
