Product Details
Place of Origin: China
Brand Name: Xinhe
Model Number: Y1012B
Payment & Shipping Terms
Minimum Order Quantity: 100 pcs
Price: Negotiable
Packaging Details: Carton Packing or Plastic Box
Delivery Time: Normally 3-5 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200,000+pcs+per month
Catalogue: |
Scarifier Cutters |
Diameter: |
80mm |
Hollow Diameter: |
26mm |
Thickness: |
8mm |
Body Material: |
Carbide Steel |
Tip Material: |
High Quality TCT Carbide |
Pin Number: |
12 Pins |
Hardness: |
46-55 HRC |
Coating Finish: |
Zinc Silver |
Tip Size: |
4*8.5mm |
Catalogue: |
Scarifier Cutters |
Diameter: |
80mm |
Hollow Diameter: |
26mm |
Thickness: |
8mm |
Body Material: |
Carbide Steel |
Tip Material: |
High Quality TCT Carbide |
Pin Number: |
12 Pins |
Hardness: |
46-55 HRC |
Coating Finish: |
Zinc Silver |
Tip Size: |
4*8.5mm |

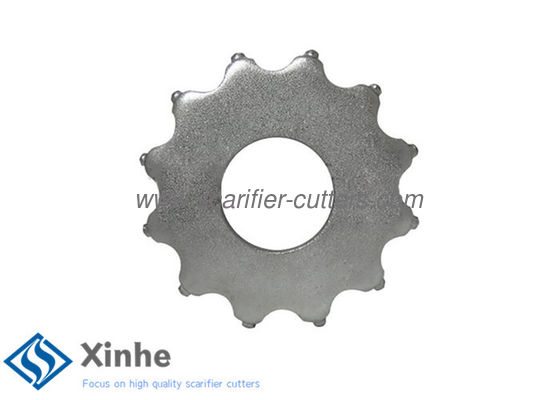

Concrete Floor Planers Parts 12pt Scarifier TCT Cutters For Bartell BEF320 Hevey Duty Multiplane Machines
1) Specification:
Part #.:Y1012A
Dimension: O.D. 80mm x I.D. 26mm( I.D 30mm optional) x Width 8mm
Pin Size: 4*8.5 mm
Spike Number: 12 Spikes
Net Weight: 0.21 kg
Materials: Carbide fully hardened steel body
Long Lasting Tungsten Carbide Tips
Coating: Zinc place coating
Hardness: 46-55 HRC
2) Product description

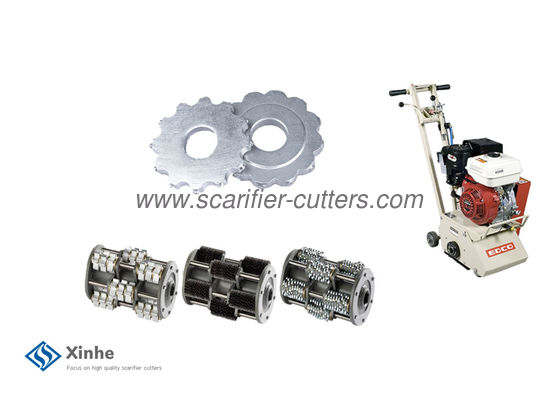

Our tungsten TCT rotary cutters (flails) are mounted on the interchangeable cutter assemblie drum shaft of planers/scarifiers, milling machines or other floor surface prep machines to tackle the most demanding applications of surface preparation and material removal and to do the light or heavy stock removal.
3) Application:
Suitable for large jobs
Fast removal of hard coatings and membranes
Accurate levelling and removing layers of hard materials
Removing painted lines
Grooving and texturing concrete
cages and cutters are great for tasks like milling of misaligned sidewalk, scabbling of concrete surfaces, milling concrete, removing thick urethane rubber, coal tar epoxy, marine non-skid, asphalt, light to medium milling of concrete, and thick non-skid removal from steel.
