Product Details
Place of Origin: China
Brand Name: xinhe
Model Number: Y1012B
Payment & Shipping Terms
Minimum Order Quantity: 100 pcs
Price: Negotiable
Packaging Details: carton package or plastic box
Delivery Time: Normally 3-5 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200,000+pcs+per month
Product Name: |
Carbide-tipped Cutters |
Outer Diameter: |
80 Mm |
Inner Diameter: |
26 Mm |
Width: |
8 Mm |
Cutter Body Material: |
Steel |
Cutter Tip Material: |
Premium Carbide |
Tip Number: |
12 Spike |
Hardness: |
46-55 HRC |
Supply Ability: |
180,000pcs Per Month |
Delivery Date: |
15-20 Working Days |
Coating: |
Zinc Silver |
Packing: |
Carton Box |
Carbide Dimension: |
4*8.5 Mm |
Product Name: |
Carbide-tipped Cutters |
Outer Diameter: |
80 Mm |
Inner Diameter: |
26 Mm |
Width: |
8 Mm |
Cutter Body Material: |
Steel |
Cutter Tip Material: |
Premium Carbide |
Tip Number: |
12 Spike |
Hardness: |
46-55 HRC |
Supply Ability: |
180,000pcs Per Month |
Delivery Date: |
15-20 Working Days |
Coating: |
Zinc Silver |
Packing: |
Carton Box |
Carbide Dimension: |
4*8.5 Mm |

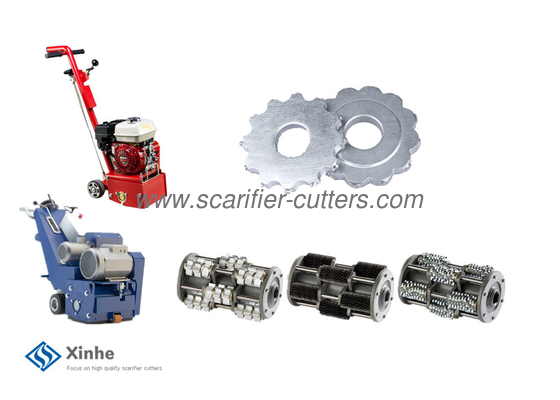

The 12 pt Tungsten Carbide Tipped (TCT) Scarifier Cutters Large Diameter Wheels
1) Specification:
O.D. 80mm x I.D. 26mm x Width 8mm
O.D. 3.15" I.D. 1.02" Width 0.31"
carbide fully hardened steel body
Long Lasting Tungsten Carbide Tips
Finish: Zinc place coating
Hardness: 46-55 HRC
Premium OEM Quality Scarifier Accessories and Consumables
2) Our full dimension sheet:
| Products Lists | |||||||
| ITEM | DESCRITION | SPEC. | |||||
| Tip Number | O. D | I. D | Width | Carbide Tip Dimension | N.W. | ||
| TCT Carbide Flail cutters | |||||||
| Y1005 | 5pt TCT Flail Carbide Cutter | 5 | 43 mm | 16 mm | 6 mm | 4*8.5 mm | 0.038kg |
| Y1006 | 6pt TCT Flail Carbide Cutter | 6 | 47 mm | 15.5 mm | 6 mm | 4*8.5 mm | 0.048kg |
| 6 | 47 mm | 17mm | 6 mm | 4*8.5 mm | 0.047kg | ||
| 6 | 47 mm | 20 mm | 6 mm | 4*8.5 mm | 0.041kg | ||
| Y1006-1 | 6pt TCT Flail Carbide Cutter | 6 | 56.9 mm | 17.3 mm | 6 mm | 4*8.5 mm | 0.083kg |
| 6 | 56.9 mm | 25 mm | 6 mm | 4*8.5 mm | 0.071kg | ||
| Y1008F | 8pt TCT Flail Carbide Cutter | 8 | 58.3 mm | 17.6 mm | 6 mm | 4*8.5 mm | 0.075kg |
| Y1008B | 8pt TCT Flail Carbide Cutter | 8 | 60.3 mm | 20 mm | 6 mm | 4*8.5 mm | 0.085kg |
| 8 | 60.3 mm | 18 mm | 6 mm | 4*8.5 mm | 0.081kg | ||
| 8 | 60.3 mm | 22 mm | 6 mm | 4*8.5 mm | 0.079kg | ||
| 8 | 60.3 mm | 25.8 mm | 6 mm | 4*8.5 mm | 0.074kg | ||
| Y1008D | 8pt TCT Flail Carbide Cutter | 8 | 82.5 mm | 30 mm | 8 mm | 4*8.5 mm | 0.217kg |
| Y1012A | 12pt TCT Flail Carbide Cutter | 12 | 80 mm | 26 mm | 8 mm | 4*8.5 mm | 0.224kg |
| Y1012B | 12pt TCT Flail Carbide Cutter | 12 | 80 mm | 30 mm | 8 mm | 4*8.5 mm | 0.224kg |
| Full Face Carbide Cutters-- Wide Teeth | |||||||
| F2006 | 6pt Full Face Carbide Cutter | 6 | 47 mm | 15.5 mm | 6 mm | 6*6*3 mm | 0.048kg |
| F2008 | 8pt Full Face Carbide Cutter | 8 | 60.3 mm | 20 mm | 6 mm | 6*6*3 mm | 0.087kg |
| F2016 | 12pt Full Face Carbide Cutter | 16 | 82 mm | 26.5 mm | 8 mm | 10*8*3 mm | 0.285kg |
| Milling cutters | |||||||
| LQ-80 | 6pt Carbide Milling Cutter | 6 | 80 mm | 30 mm | 19 mm | 3*11*19 mm | 0.482kg |
| LQ-55 | 6pt Carbide Milling Cutter | 6 | 55 mm | 18 mm | 19 mm | 3*7*18.5mm | 0.251kg |
| LQ-60 | 6pt Carbide Milling Cutter | 6 | 60 mm | 25 mm | 19 mm | 2*6*21.5mm | 0.35kg |
| LQ-40 | 5pt Carbide Milling Cutter | 5 | 40 mm | 15 mm | 22 mm | 2*6*21.5mm | 0.138kg |
| Full Hardened Steel Cutters | |||||||
| QG-C | 12pt Hardened Beam Steel Cutter-blunt tip | 12 | 41.9 mm | 16.2 mm | 3.1mm | N/A | 0.015kg |
| QG-B | 18pt Hardened Star Steel Cutter-sharp tip | 18 | 31 mm | 7 mm | 2.5 mm | N/A | 0.012kg |
3) Application:
Surface Preparator
Surface-Prep Solutions
professional prep tools
striping, pavement, and flooring contractors
asphalt and concrete removal projects
toughest milling removal projects
routing removal projects
4) Product description
Our TCT carbide flail scarifier cutters are used for leveling, grinding, cleaning, grooving, milling, and other general surface preparation with all kinds of scarifier and concrete planer machines, such as brands EDCO,Bartell SPE, Blastrac, Smith, SASE,HTC,Trelawny,Kindex,Scanmaskin and etc.. And also they can work excellently to remove traffic lines, pavement markings, epoxy, paint, and waterproofing membranes. We use premium quality tungsten carbide for our flail cutters so as to last up to 30 times longer and remove up to 5 times faster than traditional steel scarifier cutters.
Remarks: except for our available standard dimensions, we can also OEM/ODM other customized dimension according to you scarifier drum, pls turn to our customer service for more details.
We keep a full range of stock for TCT cutters, beam flails ,milling cutters,scabbler bits and other spares for your cutter drums and flail shafts to fit your equipments.
