Product Details
Place of Origin: China
Brand Name: xinhe
Model Number: LQ-40
Payment & Shipping Terms
Minimum Order Quantity: 100 pcs
Price: Negotiable
Packaging Details: carton package
Delivery Time: Normally 3-5 working days
Payment Terms: T/T, L/C, Western Union
Material: |
Tungsten Carbide |
Outer Diameter: |
40 Mm |
Inner Diameter: |
15 Mm |
Width: |
22 Mm |
N.W: |
0.128 KG |
Carbide Tip Dimension: |
2*6*21.5 Mm |
Use: |
Asphalt Surface |
Color: |
Silver Zinc |
Material: |
Tungsten Carbide |
Outer Diameter: |
40 Mm |
Inner Diameter: |
15 Mm |
Width: |
22 Mm |
N.W: |
0.128 KG |
Carbide Tip Dimension: |
2*6*21.5 Mm |
Use: |
Asphalt Surface |
Color: |
Silver Zinc |

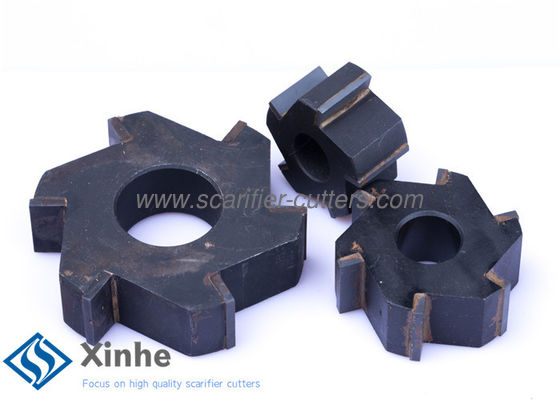

Bartell SPE BEF Scarifier Accessories Carbide Tipped Milling Cutters For ScarifIer Machines
Carbide Tipped Milling Cutters For Road Construction Scarifying Machine
1) Specification:
LQ-40 Product features
Milling Scarifier Cutters hard metal cutter with tungsten carbide tips for scarifying an milling accessories
5 edge tungsten carbide milling cutter
O.D. 40mm x I.D. 15mm x Width 22mm
O.D. 1.57" I.D. 0.59" Width 0.87"
carbide fully hardened steel body
Long Lasting Tungsten Carbide Tips
Finish: Zinc place coating or blackened treatment
2) Our full dimension sheet:
| Products Lists | |||||||
| ITEM | DESCRITION | SPEC. | |||||
| Tip Number | O. D | I. D | Width | Carbide Tip Dimension | N.W. | ||
| TCT Carbide Flail cutters | |||||||
| Y1005 | 5pt TCT Flail Carbide Cutter | 5 | 43 mm | 16 mm | 6 mm | 4*8.5 mm | 0.038kg |
| Y1006 | 6pt TCT Flail Carbide Cutter | 6 | 47 mm | 15.5 mm | 6 mm | 4*8.5 mm | 0.048kg |
| 6 | 47 mm | 17mm | 6 mm | 4*8.5 mm | 0.047kg | ||
| 6 | 47 mm | 20 mm | 6 mm | 4*8.5 mm | 0.041kg | ||
| Y1006-1 | 6pt TCT Flail Carbide Cutter | 6 | 56.9 mm | 17.3 mm | 6 mm | 4*8.5 mm | 0.083kg |
| 6 | 56.9 mm | 25 mm | 6 mm | 4*8.5 mm | 0.071kg | ||
| Y1008F | 8pt TCT Flail Carbide Cutter | 8 | 58.3 mm | 17.6 mm | 6 mm | 4*8.5 mm | 0.075kg |
| Y1008B | 8pt TCT Flail Carbide Cutter | 8 | 60.3 mm | 20 mm | 6 mm | 4*8.5 mm | 0.085kg |
| 8 | 60.3 mm | 18 mm | 6 mm | 4*8.5 mm | 0.081kg | ||
| 8 | 60.3 mm | 22 mm | 6 mm | 4*8.5 mm | 0.079kg | ||
| 8 | 60.3 mm | 25.8 mm | 6 mm | 4*8.5 mm | 0.074kg | ||
| Y1008D | 8pt TCT Flail Carbide Cutter | 8 | 82.5 mm | 30 mm | 8 mm | 4*8.5 mm | 0.217kg |
| Y1012A | 12pt TCT Flail Carbide Cutter | 12 | 80 mm | 26 mm | 8 mm | 4*8.5 mm | 0.224kg |
| Y1012B | 12pt TCT Flail Carbide Cutter | 12 | 80 mm | 30 mm | 8 mm | 4*8.5 mm | 0.224kg |
| Full Face Carbide Cutters-- Wide Teeth | |||||||
| F2006 | 6pt Full Face Carbide Cutter | 6 | 47 mm | 15.5 mm | 6 mm | 6*6*3 mm | 0.048kg |
| F2008 | 8pt Full Face Carbide Cutter | 8 | 60.3 mm | 20 mm | 6 mm | 6*6*3 mm | 0.087kg |
| F2016 | 12pt Full Face Carbide Cutter | 16 | 82 mm | 26.5 mm | 8 mm | 10*8*3 mm | 0.285kg |
| Milling cutters | |||||||
| LQ-80 | 6pt Carbide Milling Cutter | 6 | 80 mm | 30 mm | 19 mm | 3*11*19 mm | 0.482kg |
| LQ-55 | 6pt Carbide Milling Cutter | 6 | 55 mm | 18 mm | 19 mm | 3*7*18.5mm | 0.251kg |
| LQ-60 | 6pt Carbide Milling Cutter | 6 | 60 mm | 25 mm | 19 mm | 2*6*21.5mm | 0.35kg |
| LQ-40 | 5pt Carbide Milling Cutter | 5 | 40 mm | 15 mm | 22 mm | 2*6*21.5mm | 0.138kg |
| Full Hardened Steel Cutters | |||||||
| QG-C | 12pt Hardened Beam Steel Cutter-blunt tip | 12 | 41.9 mm | 16.2 mm | 3.1mm | N/A | 0.015kg |
| QG-B | 18pt Hardened Star Steel Cutter-sharp tip | 18 | 31 mm | 7 mm | 2.5 mm | N/A | 0.012kg |
3) Application:
Scarifier Milling Cutters are utilized for removing thick and soft materials such as mastic, thermoplastic, waterproofing membranes, cold plastic coatings, glues and the like. It leaves the surface smooth and ready for preparation, and is often used to remove the bulk of material prior to using a carbide-tipped cutter. Utilize the Milling Cutter for traffic line removal, epoxy removal, thermoplastic removal, waterproofing membrane removal, cold plastic coatings removal and general scarification. Long lasting, removes all types of materials and leaves a smooth finish. Fits all machines.
4) Our service:
1. Prompt delivery
2. After-sale service
3. Customized service
4.Sample service
5.OEM service
6. Inquiries are typically replyed within 24 hours
