| Product Item: | CF-2128 | Teeth Number: | 8 Points |
|---|---|---|---|
| Carbide Grade: | Premium Carbide | Dimension: | O.D.60.3mm X I.D.20mm X Width6mm |
| Packing Method: | Plastic Box Or Carton Box | Compatible With: | Smith/Edco/Bartell/Sase/Trelawny Floor Planners And Scarifying Machines |
| High Light: | scarifier accessories,scarifier parts & accessories |
||

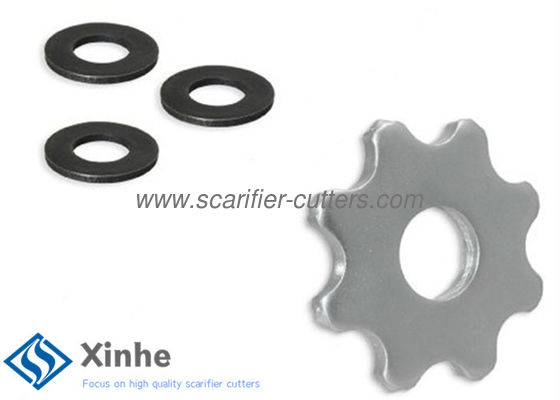

CP308T Scarifier TCT Cutters 8 Point Suits For Bartell BEF275 Concrete Scarifiers&Floor Scabblers
1) Specification:
size optional:
8 point tct flail carbide cutter
o.d. 60.3mm x i.d. 20mm x width 6mm (o.d. 2.30" i.d. 0.79" width 0.24")
o.d. 60.3mm x i.d. 22mm x width 6mm
o.d. 60.3mm x i.d. 25.8mm x width 6mm
carbide fully hardened steel body
two times longer lasting tungsten carbide tips than other cutters
finish: zinc place coating
hardness: 46-55 HRC
2) Full Product:

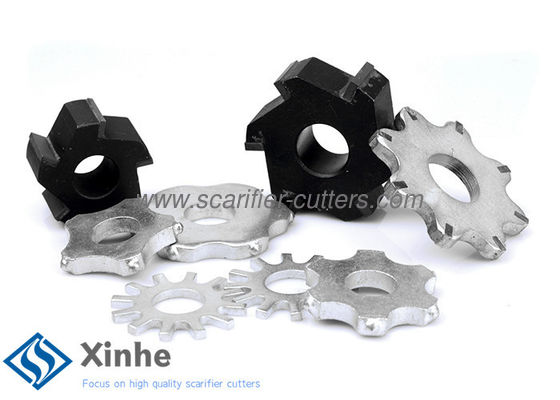

| Products Lists Sheet | ||||||
| ITEM | DESCRITION | SPEC. | ||||
| Tip No. | O. D | I. D | Width | Carbide Tip Size | ||
| TCT Carbide Flail Cutters | ||||||
| CF-2514 | 5 Point TCT Flail Carbide Cutter O.D. 43 mm x I.D. 16 mm x Width 6mm |
5 | 43mm | 16mm | 6mm | 4*8.5mm |
| CF-2516 | 6 Point TCT Flail Carbide Cutter O.D. 47 mm x I.D. 15.5 mm x Width 6mm O.D. 47 mm x I.D. 17 mm x Width 6mm O.D. 47 mm x I.D. 20 mm x Width 6mm |
6 | 47 mm | 15.5mm | 6mm | 4*8.5mm |
| 6 | 47 mm | 17mm | 6mm | 4*8.5mm | ||
| 6 | 47 mm | 20mm | 6mm | 4*8.5mm | ||
| CF-2116 | 6 Point TCT Flail Carbide Cutter O.D. 56.9 mm x I.D. 17.3 mm x Width 6mm O.D. 56.9 mm x I.D. 25 mm x Width 6mm |
6 | 56.9 mm | 17.3 mm | 6mm | 4*8.5mm |
| 6 | 56.9 mm | 25 mm | 6mm | 4*8.5mm | ||
| CF-2618 | 8 Point TCT Flail Carbide Cutter O.D. 58.3 mm x I.D. 17.6 mm x Width 6mm |
8 | 58.3 mm | 17.6 mm | 6mm | 4*8.5mm |
| CF-2128 | 8 Point TCT Flail Carbide Cutter O.D. 60.3mm x I.D. 18mm x Width 6mm O.D. 60.3mm x I.D. 20mm x Width 6mm O.D. 60.3mm x I.D. 22mm x Width 6mm O.D. 60.3mm x I.D. 25.8mm x Width 6mm |
8 | 60.3 mm | 20 mm | 6mm | 4*8.5mm |
| 8 | 60.3 mm | 18 mm | 6mm | 4*8.5mm | ||
| 8 | 60.3 mm | 22 mm | 6mm | 4*8.5mm | ||
| 8 | 60.3 mm | 25.8 mm | 6mm | 4*8.5mm | ||
| CF-3158 | 8 Point TCT Flail Carbide Cutter O.D. 82.5mm x I.D. 30 mm x Width 8mm |
8 | 82.5 mm | 30 mm | 8mm | 4*8.5mm |
| CF-3150 | 12 Point TCT Flail Carbide Cutter O.D. 80 mm x I.D. 26 mm x Width 8mm |
12 | 80 mm | 26 mm | 8mm | 4*8.5mm |
| CF-3150 | 12 Point TCT Flail Carbide Cutter O.D. 80 mm x I.D. 30 mm x Width 8mm |
12 | 80 mm | 30 mm | 8mm | 4*8.5mm |
| Full Face Carbide Cutters-- Wide Teeth | ||||||
| CF-2526 | 6 Point Full Face Carbide Cutter O.D. 47 mm x I.D. 15.5 mm x Width 6mm |
6 | 47 mm | 15.5 mm | 6mm | 6*6*3mm |
| CF-2228 | 8 Point Full Face Carbide Cutter O.D. 60.3mm x I.D. 20mm x Width 6mm |
8 | 60.3 mm | 20 mm | 6mm | 6*6*3mm |
| CF-4116 | 12 Point Full Face Carbide Cutter O.D. 82mm x I.D. 26.5mm x Width 8mm |
16 | 82 mm | 26.5 mm | 8mm | 10*8*3mm |
| Milling Cutters | ||||||
| LQ-80 | 6pt Carbide Tipped Milling Cutter | 6 | 80 mm | 30 mm | 19 mm | 3*11*19mm |
| LQ-55 | 6pt Carbide Tipped Milling Cutter | 6 | 55 mm | 18 mm | 19 mm | 3*7*18.5mm |
| LQ-60 | 6pt Carbide Tipped Milling Cutter | 6 | 60 mm | 25 mm | 19 mm | 2*6*21.5mm |
| LQ-40 | 5pt Carbide Tipped Milling Cutter | 5 | 40 mm | 15 mm | 22 mm | 2*6*21.5mm |
| Full Hardened Steel Cutters | ||||||
| HS1013 | 12pt Hardened Beam Steel Cutter blunt tip |
12 | 41.9 mm | 16.2 mm | 3.1mm | |
| 18pt Hardened Star Steel Cutter sharp tip |
18 | 31 mm | 7 mm | 2.5 mm | ||
3) Application:
High Quality Materials: high quality carbide steel and premium carbide
Competitive Price : promise to be most competitive among same range products
Excellent Customer Service: wherever,whenever and for whatever you are welcomed to turn to us!
Gurantee: We are specializing for the manufacture.We can guarantee the cargos quality,if there have any problems,our factory bear all the expenses.
